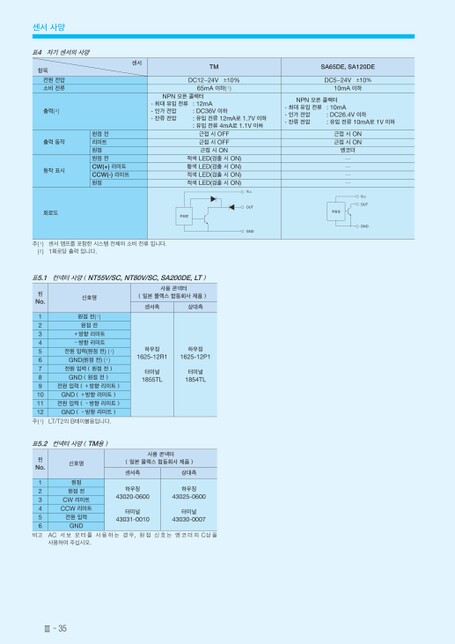

센서사양표4자기센서의사양항목전원전압소비전류출력(2)출력동작동작표시회로도원점전리미트원점원점전CW(+)리미트CCW(-)리미트원점센서TMDC12~24V±10%65mA이하(1)SA65DE,SA120DEDC5~24V±10%10mA이하NPN오픈콜렉터・최대유입전류・인가전압・잔류전압:12mA:DC36V이하:유입전류12mA로1.7V이하:유입전류4mA로1.1V이하NPN오픈콜렉터・최대유입전류・인가전압・잔류전압:10mA:DC26.4V이하:유입전류10mA로1V이하근접시OFF근접시OFF근접시ON적색LED(검출시ON)황색LED(검출시ON)적색LED(검출시ON)적색LED(검출시ON)주회로VCCOUTGND근접시ON근접시ON엔코더――――주회로VCCOUTGND주(1)센서앰프를포함한시스템전체의소비전류입니다.(2)1회로당출력입니다.표5.1컨넥터사양(NT55V/SC,NT80V/SC,SA200DE,LT)사용콘넥터(일본몰렉스합동회사제품)센서측상대측하우징하우징1625-12R11625-12P1터미널1855TL터미널1854TL핀No.123456789101112신호명원점전(1)원점전+방향리미트-방향리미트전원입력(원점전)(1)GND(원점전)(1)전원입력(원점전)GND(원점전)전원입력(+방향리미트)GND(+방향리미트)전원입력(-방향리미트)GND(-방향리미트)주(1)LT/T2의B테이블용입니다.표5.2컨넥터사양(TM용)핀No.123456비고신호명원점원점전CW리미트CCW리미트전원입력GND사용콘넥터(일본몰렉스합동회사제품)센서측상대측하우징43020-0600터미널43031-0010하우징43025-0600터미널43030-0007AC서보모터를사용하는경우,원점신호는엔코더의C상을사용하여주십시오.Ⅲ-35
| <
|
> |
>>
