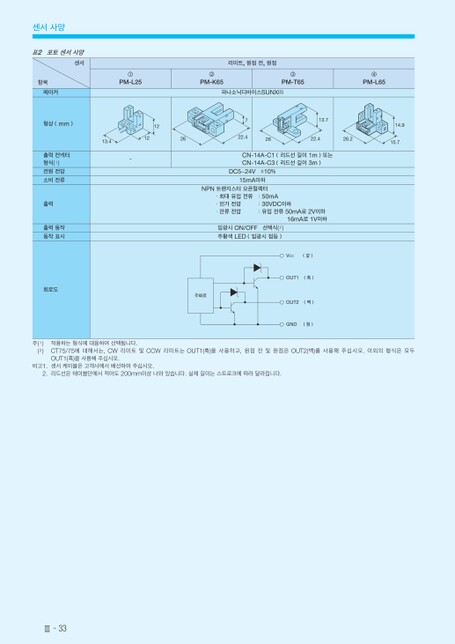

센서사양표2포토센서사양센서항목메이커형상(mm)출력컨넥터형식(1)전원전압소비전류출력출력동작동작표시회로도①PM-L2513.4-리미트,원점전,원점②PM-K65③PM-T65파나소닉디바이스SUNX㈜121226722.413.72622.426.2CN-14A-C1(리드선길이1m)또는CN-14A-C3(리드선길이3m)DC5~24V±10%15mA이하④PM-L6514.915.7NPN트랜지스터오픈컬렉터ㆍ최대유입전류:50mAㆍ인가전압ㆍ잔류전압:30VDC이하:유입전류50mA로2V이하16mA로1V이하입광시ON/OFF선택식(2)주황색LED(입광시점등)주회로VCC(갈)OUT1(흑)OUT2(백)GND(청)주(1)(2)적용하는형식에대응하여선택됩니다.CT75/75에대해서는,CW리미트및CCW리미트는OUT1(흑)을사용하고,원점전및원점은OUT2(백)를사용해주십시오.이외의형식은모두OUT1(흑)을사용해주십시오.비고1.센서케이블은고객사에서배선하여주십시오.2.리드선은테이블단에서적어도200mm이상나와있습니다.실제길이는스트로크에따라달라집니다.Ⅲ-33
| <
|
> |
>>
