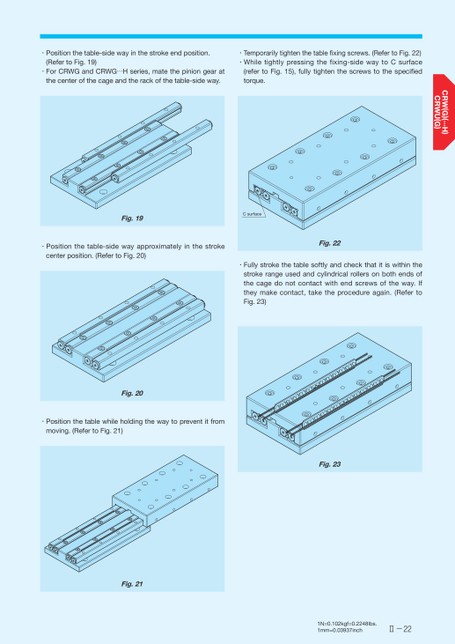

・Positionthetable-sidewayinthestrokeendposition.(RefertoFig.19)・ForCRWGandCRWG…Hseries,matethepiniongearatthecenterofthecageandtherackofthetable-sideway.・Temporarilytightenthetablefixingscrews.(RefertoFig.22)・Whiletightlypressingthefixing-sidewaytoCsurface(refertoFig.15),fullytightenthescrewstothespecifiedtorque..giF19Csurface・Positionthetable-sidewayapproximatelyinthestrokecenterposition.(RefertoFig.20).giF22・Fullystrokethetablesoftlyandcheckthatitiswithinthestrokerangeusedandcylindricalrollersonbothendsofthecagedonotcontactwithendscrewsoftheway.Iftheymakecontact,taketheprocedureagain.(RefertoFig.23).giF20・Positionthetablewhileholdingthewaytopreventitfrommoving.(RefertoFig.21).giF23.giF211N=0.102kgf=0.2248lbs.1mm=0.03937inchⅡ-22
| <
|
> |
>>
